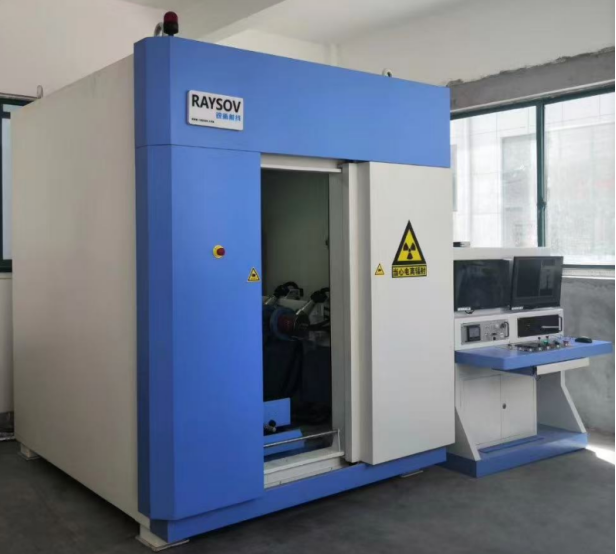

RAYSOV ZXF P-type 160kV offiline(single test) X-ray 2D inspection system for liquified gas cylinders
ZXF P-type 160kV high-frequency X-ray digital imaging (DR) offline detection system is a high-efficiency and high-precision digital X-ray imaging (DR) system specifically designed and developed for the X-ray digital imaging inspection for small-size liquified gas cylinders. It mainly relies on the characteristics that X-rays can penetrate objects and store images to conduct non-destructive evaluation of the interior of objects. It is the most effective means for product research, failure analysis, high-reliability screening, quality evaluation, and process improvement..
The high-frequency X-ray digital imaging inspection system has the characteristics of high degree of automation, high detection accuracy, intuitive detection results, fast detection speed, and the detection data is easy to analyze, measure, calculate, store and query; it can quickly and effectively detect the pores, shrinkage holes, etc. of test object. Defects such as air holes, looseness, shrinkage, and slag inclusions. It has the characteristics of high efficiency, low cost, energy saving and environmental protection.
features
Ø Our company has participated in the revision and formulation of the new standard "X-ray Digital Imaging Inspection of Gas Cylinder Butt Welds".
Ø Our company has manufactured the "Intelligent Gas Cylinder X-ray Digital Imaging Inspection System" for many domestic gas and steel cylinder manufacturers.
Ø It adopts a single-in and single-out inspection method.
Ø The height of the display can be adjusted to facilitate the operator's viewing of the display.
Ø Defects can be measured, calculated and marked.
Ø High-resolution amorphous silicon digital detector
Ø Imaging area:160mm x 130mm, pixel size: 125μm
Ø Visualization technology
Ø Real-time X-ray digital imaging display, full-process monitoring of gas cylinder inspection, achieving system operation visualization and improving operation efficiency.
Ø Modular unit design
Ø Interlock protection device
Ø Radiation protection with leakage radiation dose less than 1μSv/h, providing full safety guarantee.
Ø Multi-axis (degree of freedom) motion mechanical system to ensure no blind spots in inspection.
