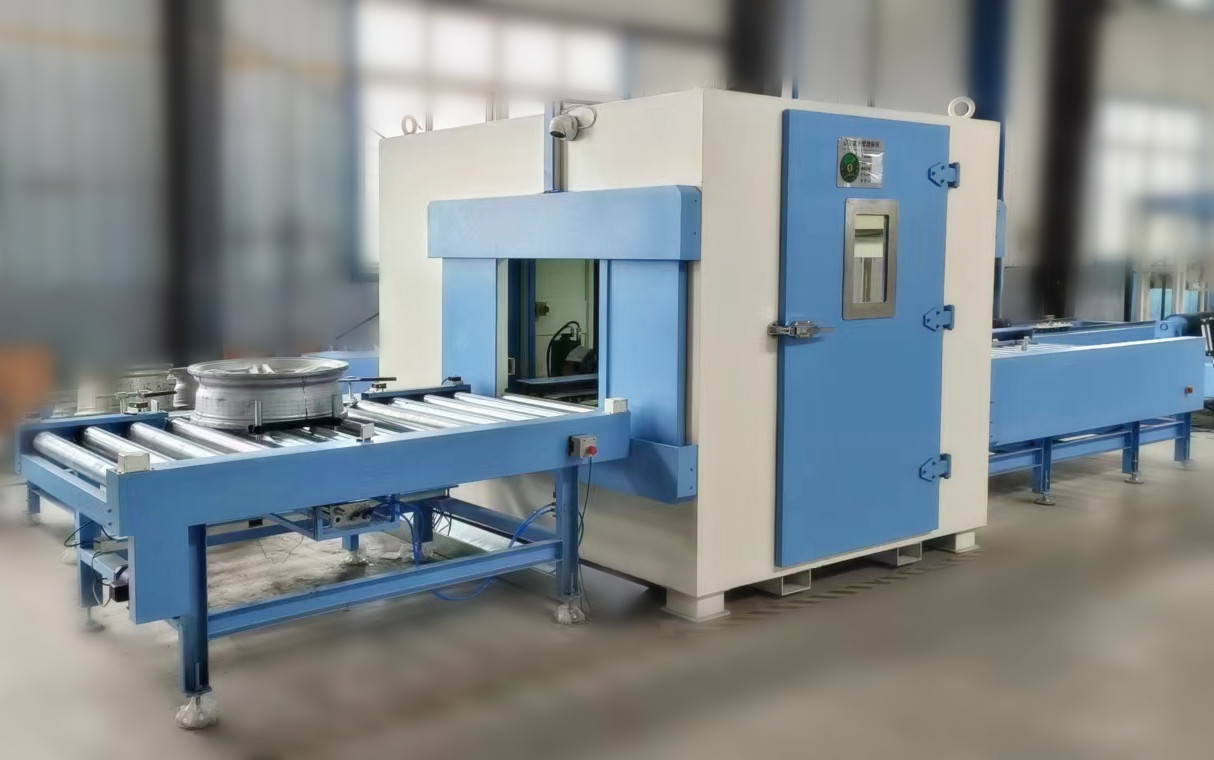

ZXFlasee 160kv aluminum alloy wheel hub X-ray digital imaging (DR) inspection system(Online stream)
ZXFlasee Series inspection system is an efficient and high-definition standardized inspection system designed for digital imaging (DR) X-ray inspection of aluminum alloy wheels
1. Main features
Test object size 13-24 ", which meets the majority of wheel hub detection.
X-ray radiation protection Leakage radiation dose is less than 1μSv/h, full safety guarantee.
The recognition ability of secondary and tertiary defects of the metal-ceramic tube X-ray machine is obviously higher than that of the integrated X-ray source.
use of cermet tube high-power small-focus X-ray machine, the identification ability higher
Detection time: 17 "wheel hub about 45s
CNC programming is used to complete the motion trajectory required for each wheel shape detection, X-ray energy setting for different detection parts and lead door switch, etc.
Based on the intelligent camera image acquisition system, automatic recognition of the wheel shape.
2. Detection process
1) The wheel hub to be inspected enters the entry cart, the entry cart transports the hub to the entrance door, andpushes the hub into the lead protection room.
2). L-type chain drives the wheel hub to be inspected to the detection position, the X-ray is emitted by the X-ray tube, the test wheel is detected through X-ray, and the detection image is received by the flat-panel detector and displayed on the computer monitor. The C-arm can detect the inclination Angle, and the transmission chain can move the wheel hub forward or backward to complete the observation of the internal defects of the wheel.
3). At the end of the test, the chain will transport the inspected wheel hub to the outlet cart, run to the outlet, and transport to the roller table.
4) Repeat the above procedure steps to complete the detection of the next test wheel.
