X-ray high-precision inspection systems using in Europe

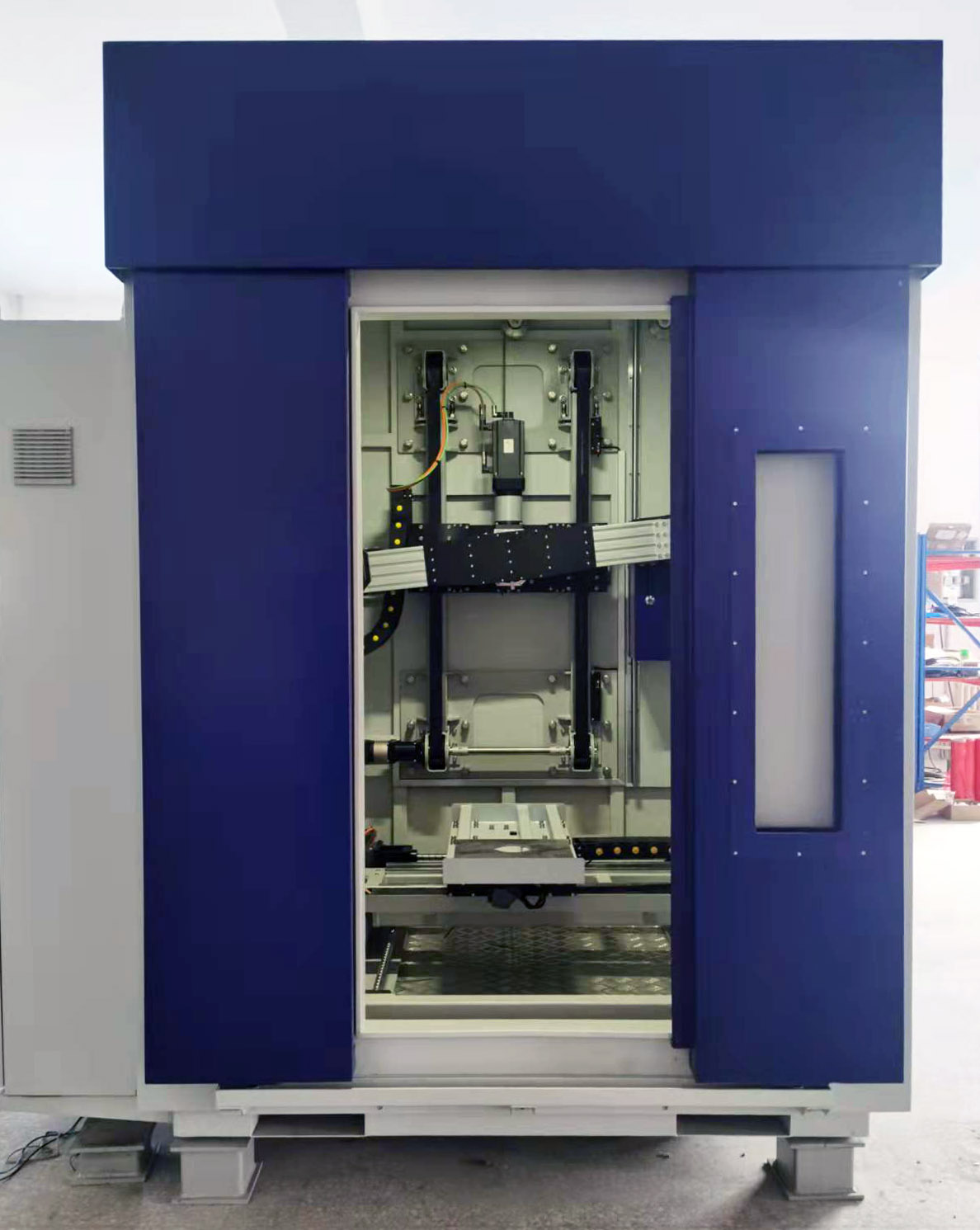

Prec D high precision X-ray DR/CT inspection system
Prec D inspection system is an efficient, high-precision, high-definition standardized inspection system designed for digital imaging (DR) X-ray inspection of high-end and medium (600x600x800mm) castings with both DR&CT functions.
Test test-object: Material: aluminum, steel, resin, ceramics and other castings or welding parts
Main features
Full Siemens servo motor, smooth operation, low failure rate, high running accuracy
High stability C-arm structure, can achieve CT measurement accuracy
140μm, 16bit, amorphous silicon plate for higher detection sensitivity
EN new standard HD small focus d=0.4mm, defect identification is clearer
Compatible with DR/CT dual detection mode, can be qualitative detection and quantitative analysis
Radiation protection Leakage radiation dose is less than 1μSv/h, full safety guarantee
2. Description of the detection process (see the figure above)
1) Open the lead door and load table move to the door
2) test object enters the test room, test object move to the detection position, then close the lead door, X-ray open, and inspect test object through X-ray.C-arm have inclination Angle function,and the load table can move the test object forward or backward and rotate to completely detect the internal defects of the test object. The C-arm can also be placed in the horizontal position for CT detection.
3) After the test,close X-ray,open lead door, the test object is out of the lead room, and the next test object enters.
4) Repeat the above procedure steps to complete the detection of the next test object.
