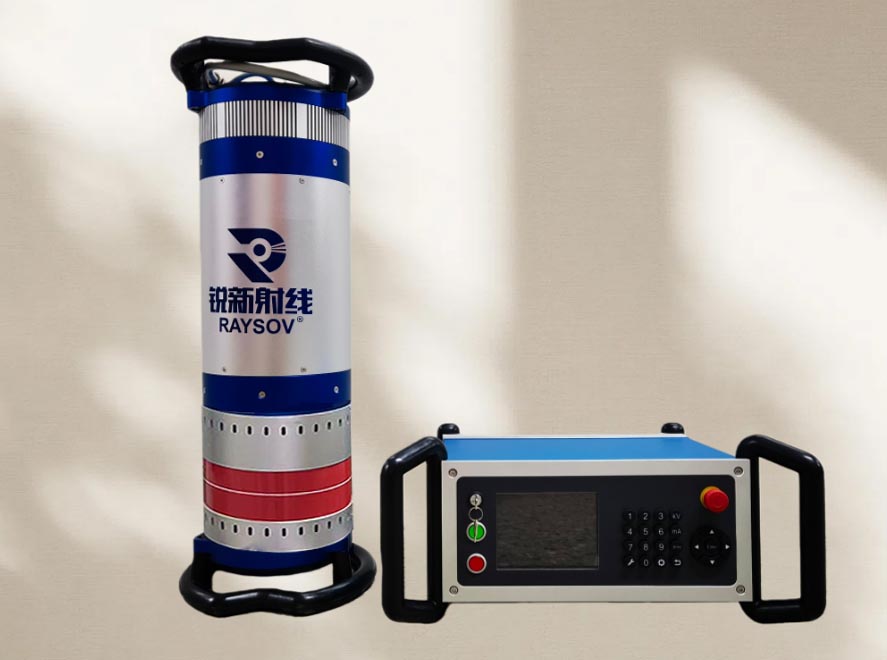

The technical parameters of panoramic X ray flaw detector are as below:
Model number | PXU300P |
KV range | 50-300KV |
mA range | 0.5-4.5mA |
Max output power | 750W |
Input voltage | AC220V + 10% |
External control input interface | Ethernet |
Continuous exposure time | 1-60 minutes |
Radiation angle | 38°* 360° |
Focus | 1.0mm |
Cooling method | Air cooling |
Working temperature | -20 - +50℃ |
Storage temperature | -20 - +70℃ |
Exposure time min step | 1s |
Parameters display | LCD |
Controller size | Approximately 433*408*171mm |
Generator size | Dia295*804mm |
Relying on RAYSOV own independent accumulation in core technologies such as ultra-high vacuum acquisition, independent research and development of ceramics, high-frequency constant voltage technology, target material preparation and cathode electron beam modulation, RAYSOV Instrument Co., Ltd. has successfully overcome key technical challenges such as metal ceramic sealing process, small-sized anode heat dissipation design, and high-frequency constant voltage adaptation, and developed a metal ceramic X-ray tube suitable for high-frequency portable scenarios. Based on this core technology, it has launched a complete high-frequency portable X-ray flaw detectors.
At present, the product has been officially released to the market and entered the mass production stage. Through application verification for end-user groups in fields such as aerospace component inspection, power equipment inspection, and field emergency flaw detection, the equipment's operational stability, environmental adaptability, and detection accuracy have all been recognized by the market.
