Description

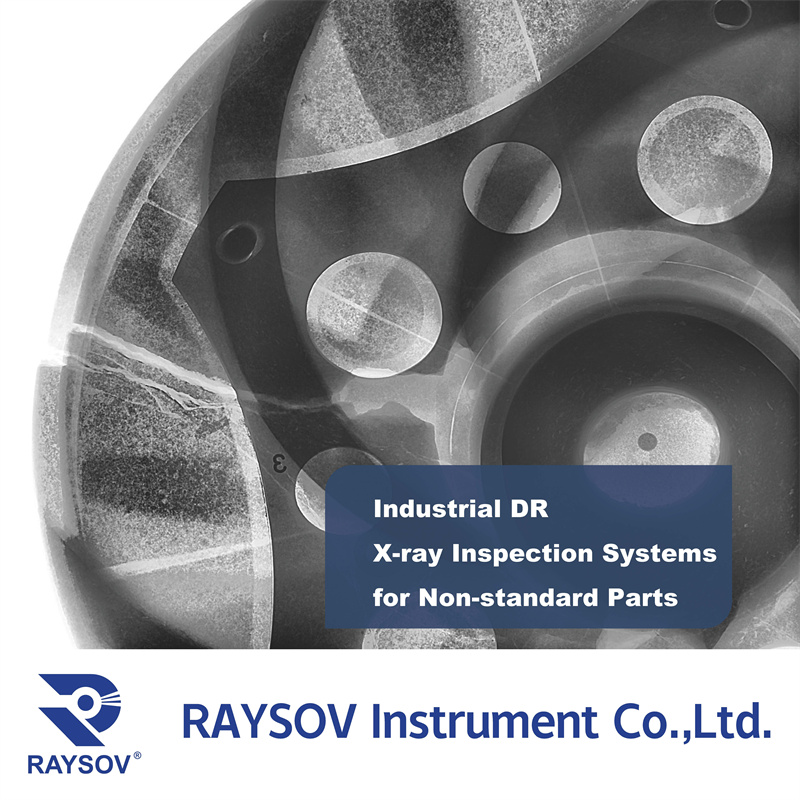

RAYSOV ZXFlasee High Energy X-ray Inspection Systems（LINAC） is suitable for non-destructive testing of super-huge/super-thick/super-desity large-scale Parts, obtaining high-quality specimen images, visually presenting internal defects, assiting the quality control with a wide range of applications across different fields,especially in defense, aerospace, maritime, nuclear power industries.
Features

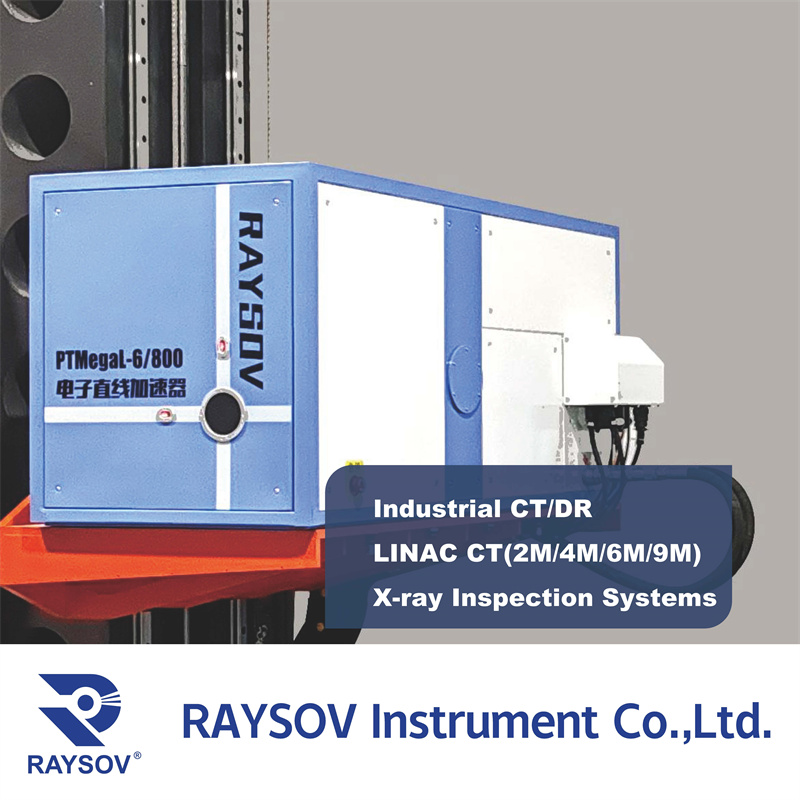

Use linac as X-ray source,strong penetrating power and stable X-ray dose.Use wide range HD Flat-panel detector,high image sensitivity.

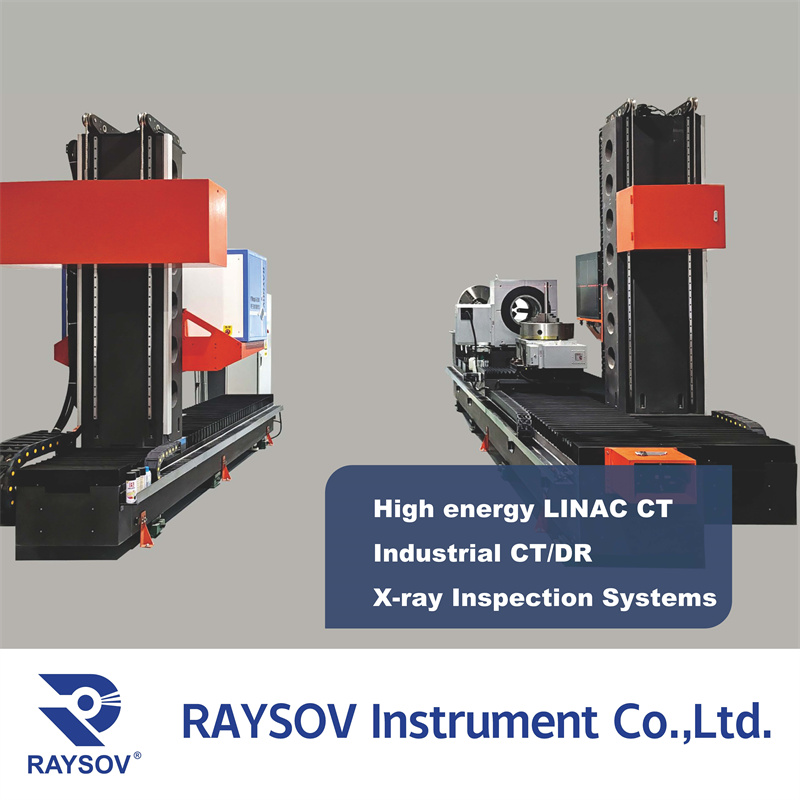

Excellent performance with high-accuracy multi-axis mechanical motion platform.
High-level automation,automatic transport test object, automatic positioning to detection area,optional ADR function,improve detection efficiency.
Raylion image processing software,powerful filtering function one click,clear image quality,easy operate,one click inspection report.
Strong structure,beautiful appearance,high-level protection, leakage dose <1μSv/h@30cm from lead room.
Modular design,easy maintenance,system log can store fault message and self-diagnosis,reduce downtime costs.
Composition
The system is mainly composed of seven modules, such as：
1. high energy X-ray source,
2. high resolution digital flat panel detector,
3. computer digital image processing system,
4. mechanical transmission system,
5. electrical control system,
6. monitoring system,
7. protective lead room.
All systems are designed to comply with the latest international radiation safety standards.
Application
High Energy X-ray Inspection Systems（LINAC DR） are used in various industries for the non-destructive testing and evaluation(NDT&NDE)of super-huge/super-thick/super-desity large-scale products, components, and materials. These systems use X-rays to penetrate objects and capture images of their internal structures, enabling inspectors to identify defects, anomalies, and potential safety issues.

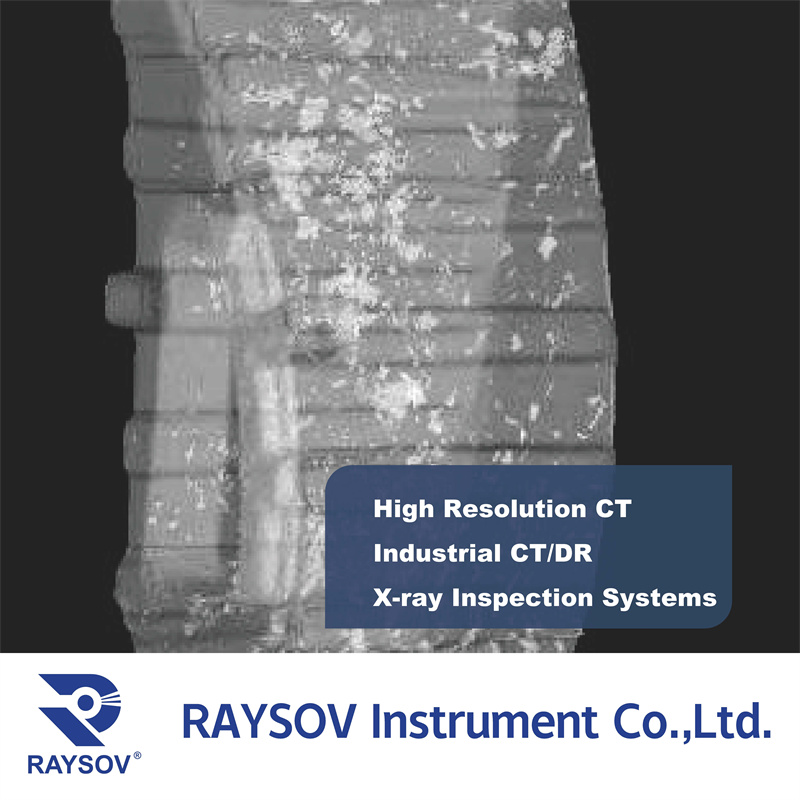

The system can also be upgraded to include LINAC CT (Computed Tomography) capabilities, allowing for even more detailed 3D analysis of the super-huge/super-thick/super-desity large-scale part internal structures and materials. This makes it particularly useful for quality control and failure analysis in various industries, such as automotive, defense, aerospace, maritime, nuclear power industries.
