Description
RAYSOV ZXFlasee Digital X-ray System for Insulating Parts is suitable for non-destructive testing of Insulating Parts, obtaining high-quality specimen images, visually presenting internal defects, assiting the quality control in electric power industry.
Features
Use HFHV generator,strong penetrating power and stable X-ray dose.Use wide range HD Flat-panel detector,high image sensitivity
Anti-arc,extend X-ray tube lifespan,keep the systems safe,reliable and durable
High-level automation,automatic transport test object, automatic positioning to detection area,optional ADR function,improve detection efficiency
Raylion image processing software,powerful filtering function one click,clear image quality,easy operate,one click inspection report
Strong structure,beautiful appearance,high-level protection, leakage dose <1μSv/h@30cm from lead room
Modular design,easy maintenance,system log can store fault message and self-diagnosis,reduce downtime costs

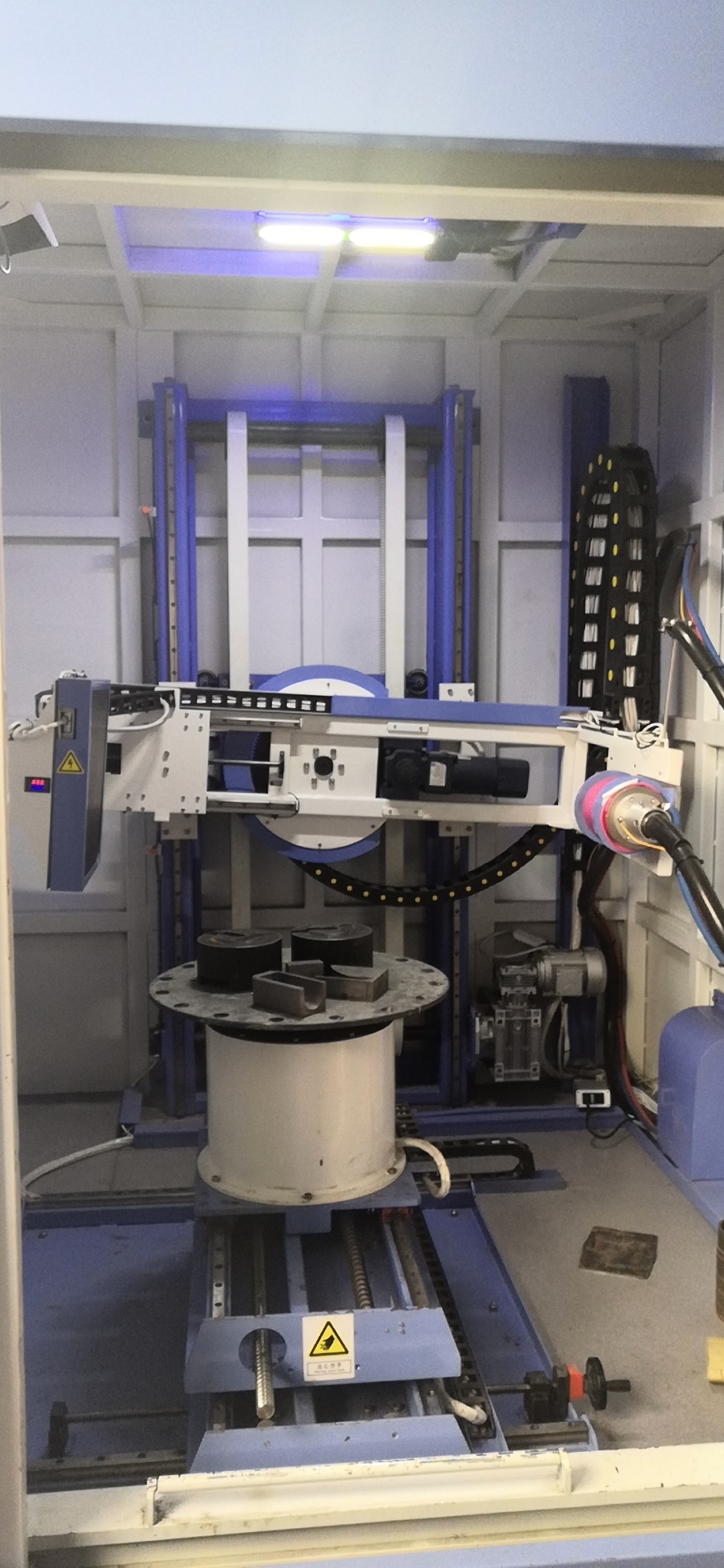

Composition
The system is mainly composed of seven modules, such as：
1. high frequency and high voltage（HFHV）X-ray source,
2. high resolution digital flat panel detector,
3. computer digital image processing system,
4. mechanical transmission system,
5. electrical control system,
6. monitoring system,
7. protective lead room.
All systems are designed to comply with the latest international radiation safety standards.
Application
X-ray Insulating Parts inspection Systems are used in various industries for the non-destructive testing and evaluation(NDT&NDE)of Insulating products, components, and materials. These systems use X-rays to penetrate objects and capture images of their internal structures, enabling inspectors to identify defects, anomalies, and potential safety issues.
