PE generator has higher protection sensitivity and light buffer protection, more suitable for X-ray tube training and other easy to spark discharge conditions

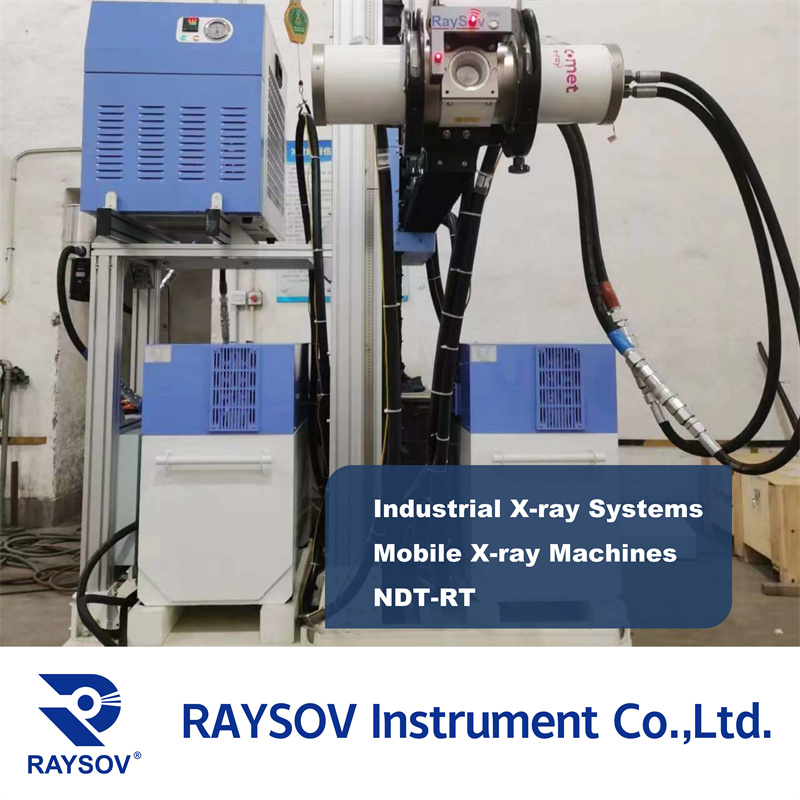

PES X-ray machine adopts a more integrated design, suitable for aerospace, industrial CT and other high-end applications
More compact, bipolar generators can be stacked to save space
Match 500kV, 550kV, 600kV and other higher voltage X-ray tubes

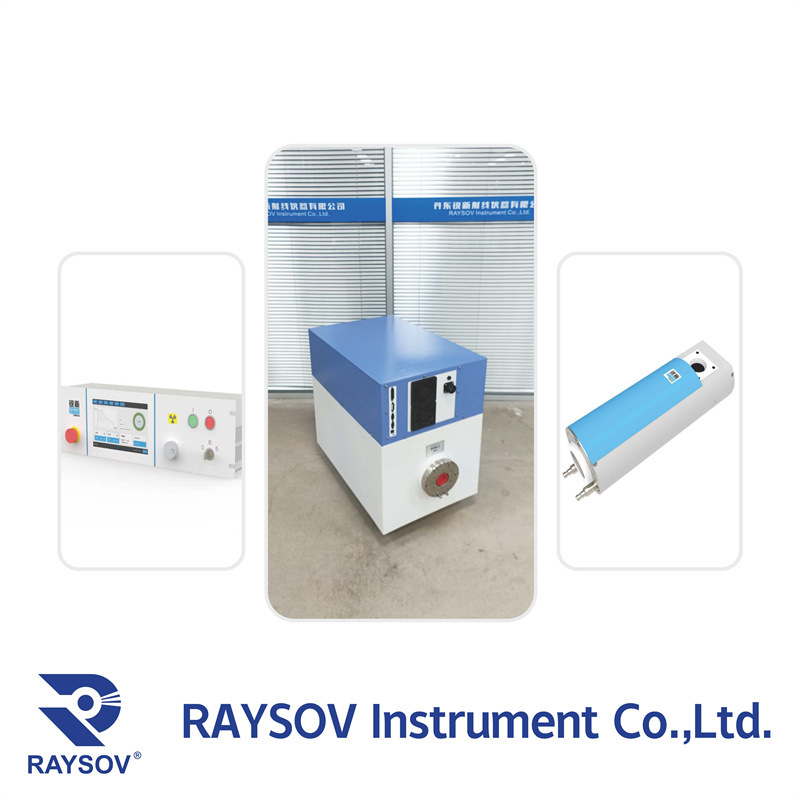

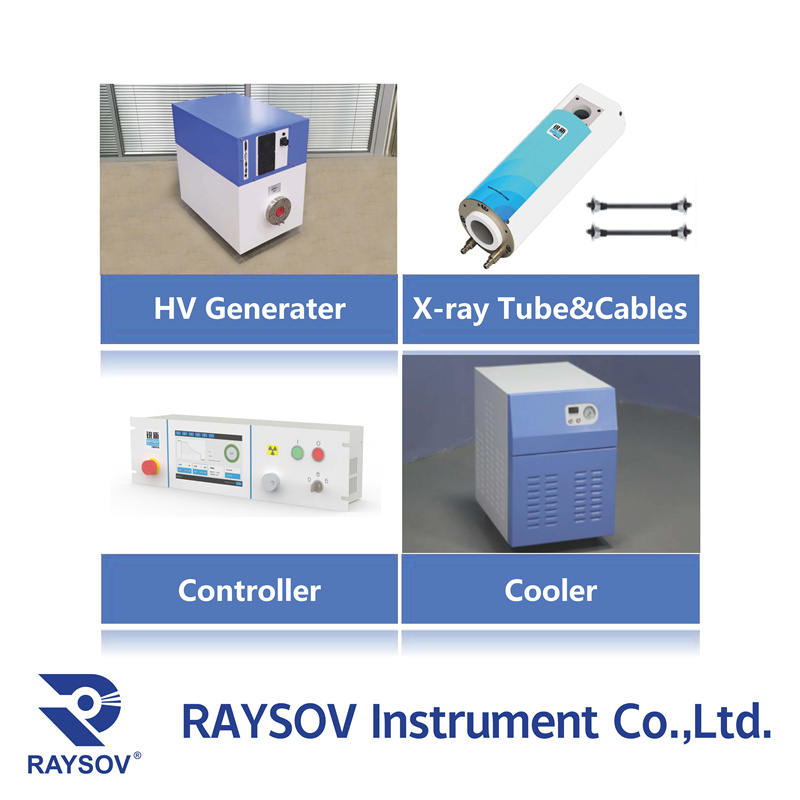

X-ray machine | X-ray tube | High-voltage cable | Generator | Controller | Cooler | |
PES160 | -160HP/11 -160HP/20
| -160/20 -160/21 -160/22 -160C | N3/160-R24-R24-Xm | PE160C3000 | PTCon5000 | PFK3000/WA PFK3000/WC |
PES225 | -225HP/11 | -225/22 -225FB -228 | P3/250-R24-R24-Xm | PE225C3000 | PTCon5000 | PFK3000/WA PFK3000/WC |
PES320 | -320HP/11 -320HP/11AX | -320/23 -320/26 -320FB | N3/160-R24-R24-Xm | PE320D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
PES450 | -451HP/11 | -451/26 -450FB | P3/250-R28-R28-Xm | PE450D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
PES500 | -500HP/11 |
| P3/250-R28-R28-Xm | PE500D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
PES550 | -550HP/11 |
| P3/250-R28-R28-Xm | PE550D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
X-ray machine | Voltage range | Current range | Maximum power | Voltage and current accuracy | Voltage and current repetition accuracy | |
PES160 | 10-160kV | 0-30mA | 3000W | 0.1%、0.1% | 0.01%、0.1% | |
PES225 | 10-225kV | 0-30mA | 3000W | 0.1%、0.1% | 0.01%、0.1% | |
PES320 | 10-320kV | 0-30mA | 4200W | 0.1%、0.1% | 0.01%、0.1% | |
PES450 | 10-450kV | 0-30mA | 4500W | 0.1%、0.1% | 0.01%、0.1% | |
PES500 | 10-500kV | 0-15mA | 1500W | 0.1%、0.1% | 0.01%、0.1% | |
PES550 | 10-550kV | 0-15mA | 1500W | 0.1%、0.1% | 0.01%、0.1% | |
