Electron linear accelerators are widely used in pressure vessel manufacturing industry, petroleum and petrochemical industry, heavy machinery industry, nuclear power industry, foundry industry, electrical equipment industry and military industry. It plays an important role in the fields of processing, medicine, hygiene, environmental protection, and material handling.

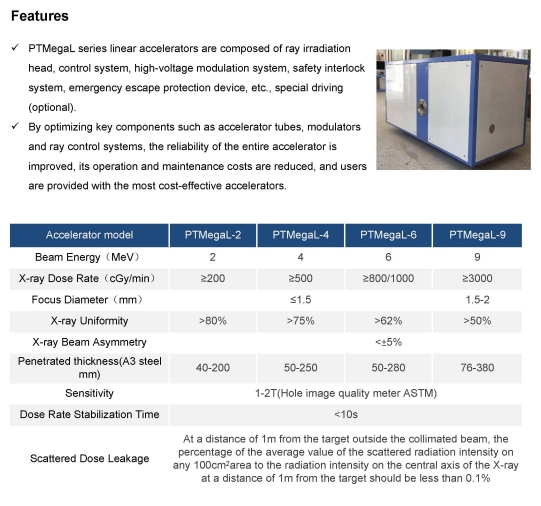

Features

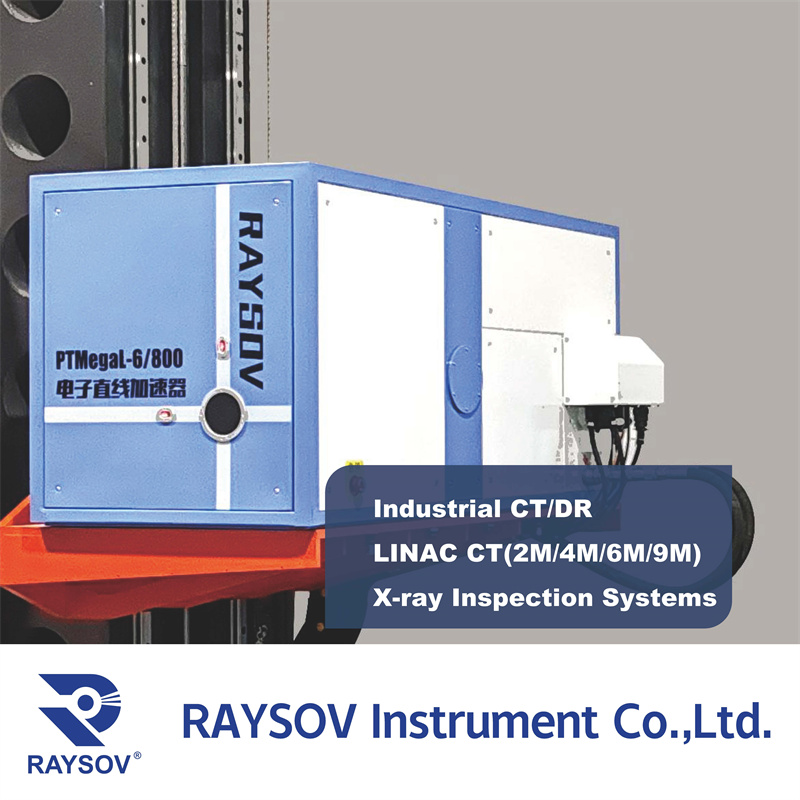

PTMegaL series linear accelerators are composed of X-ray irradiation Source, control system, high-voltage modulation system, safety interlock system, emergency escape protection device, etc., special driving (optional).
By optimizing key components such as Linear accelerator tubes, modulators and X-ray control systems, the reliability of the entire accelerator is improved, its operation and maintenance costs are reduced, and users are provided with the most cost-effective accelerators.
Parameters
Accelerator model | PTMegaL-2 | PTMegaL-4 | PTMegaL-6 | PTMegaL-9 |
Beam Energy（MeV） | 2 | 4 | 6 | 9 |
X-ray Dose Rate（cGy/min） | ≥200 | ≥500 | ≥800/1000 | ≥3000 |
Focus Diameter（mm） |
| ≤1.5 |
| 1.5-2 |
X-ray Uniformity | >80% | >75% | >62% | >50% |
X-ray Beam Asymmetry |
|
| <±5% |
|
Penetrated thickness (A3 steel mm) | 40-200 | 50-250 | 50-280 | 76-380 |
Sensitivity | 1-2T(Hole image quality meter ASTM) | |||
Dose Rate Stabilization Time | <10s | |||
Scattered Dose Leakage | At a distance of 1m from the target outside the collimated beam, the percentage of the average value of the scattered radiation intensity on any 100cm2 area to the radiation intensity on the central axis of the X-ray at a distance of 1m from the target should be less than 0.1% | |||
Comprehensive Comparison of High Energy Ray Equipment
| Applicable thickness（Fe） | Protective wall (concrete at 3m) | ||
| 80%（optimal） | 20% | main wall | auxiliary wall |
450kV X-ray machine | 60-90mm | 90-100mm | 0.8m | 0.6m |
7MeV Cyclotron | 100-150mm | 150-200mm | 1.5m | 1.3m |
4/6MeV Linear Accelerator | 150-200mm | 200-300mm | 1.8m | 1.6m |
6/9MeV Linear Accelerator | 200-300mm | 300-350mm | 2.8m | 2.2m |
