With the urgent need to reduce carbon emissions, hydrogen has attracted increasing attention as a clean and renewable energy source. However, the storage of flammable hydrogen gas is a major challenge, and it restricts the commercialisation of fuel cell electric vehicles (FCEVs).
Hydrogen tanks can be classified into five types according to the structure of the materials used.
Type I hydrogen tanks are made of metal only,include steel and aluminium alloys.
Type II hydrogen tanks are also all-metal cylinders which are similar to Type I except that they have carbon fibre or glass fibre filament wrapped around their straight body part.
Type III hydrogen tanks are uses metallic liner while Type IV uses polymeric liner,and carbon fibre or glass fibre filament wrapped around their straight body part.

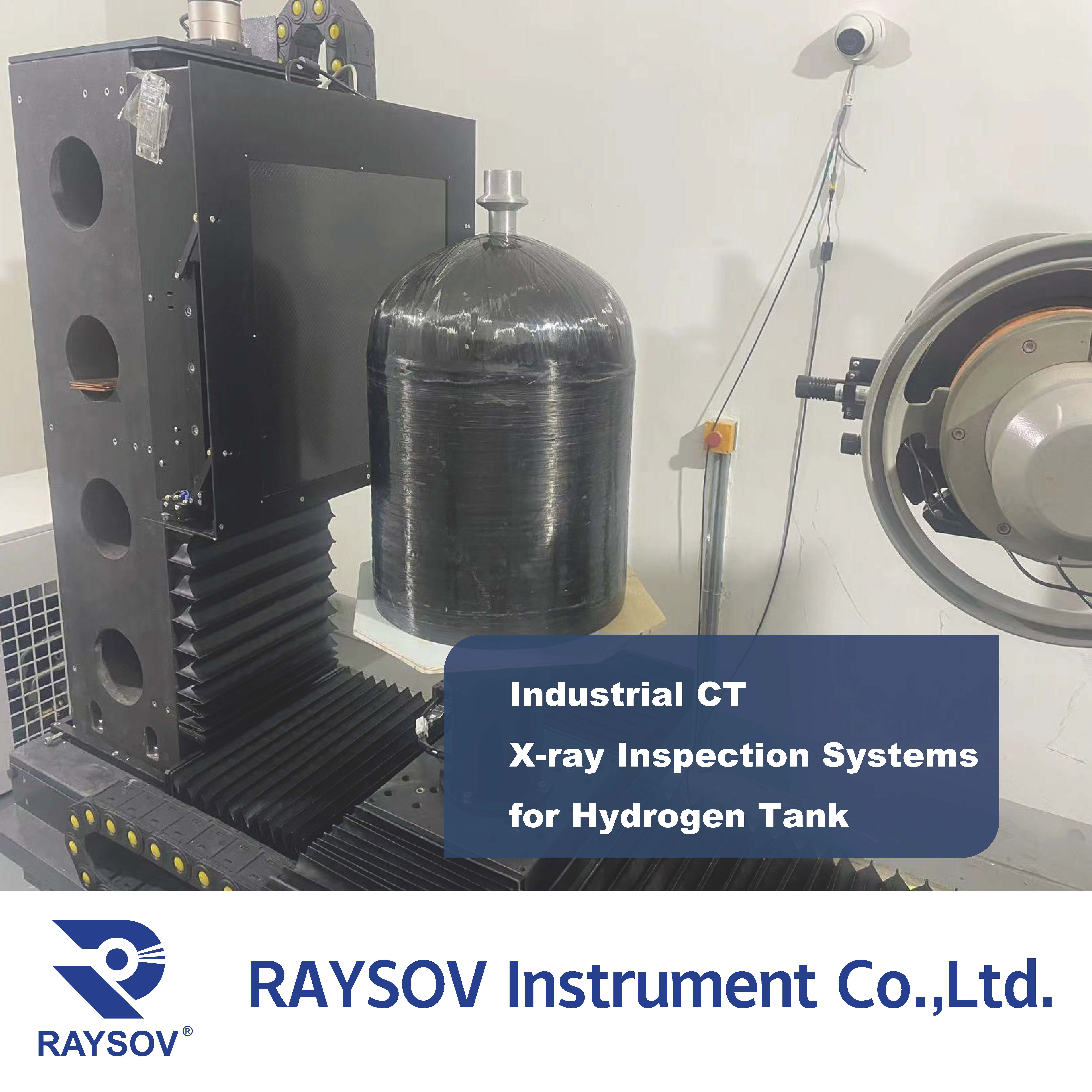

X-ray Hydrogen Storage Tank CT system through the analysis of multiple sections of the specimen imaging modeling,Whether there are defects such as desticking, delamination, bubble and metal inclusion between the gas cylinder and the structural layer; Whether there are defects such as bubbles, voids, metal inclusions between the lining and the structural layer.
Description
Base on RAYSOV ZXFlasee Flexible X-ray tomography Inspection Systems(Flexible CT) X-ray Hydrogen Storage Tank CT systemis suitable for non-destructive testing of super-huge/super-thick/super-desity large-scale Parts, obtaining high-quality specimen images, visually presenting internal defects, assiting the quality control with a wide range of applications across different fields,especially in aeronautics and astronautics, information communication, electric power electron, energy resource and traffic, science and research.
Features
Use HFHV generator,strong penetrating power and stable X-ray dose.Use powerful X-ray tube(optional microfocus tube),wide range HD Flat-panel detector,high image sensitivity.
Anti-arc,extend X-ray tube lifespan,keep the systems safe,reliable and durable.
High-level automation,automatic transport test object, automatic positioning to detection area,optional ADR function,improve detection efficiency
Raylion image processing software,powerful filtering function one click,clear image quality,easy operate,one click inspection report.
Strong structure,beautiful appearance,high-level protection, leakage dose <1μSv/h@30cm from lead room.
Modular design,easy maintenance,system log can store fault message and self-diagnosis,reduce downtime costs.
Parameters
Energy
| 160 kV
| 225 kV
|
Tube focus | Optional3µm/0.4mm/1.0mm | Optional0.4mm/1.0mm |
Detector | 16bit,100µm,43 x 43cm | 16bit,100µm,43 x 43cm |
Tilt axis X/Y/Z axis | +- 35° Granite,metrology-grade | +- 35° Granite,metrology-grade
|
FDD | 1500mm | 1500mm |
Scan mode | 3D-CT | 3D-CT |
Nondestructive testing (NDT) .

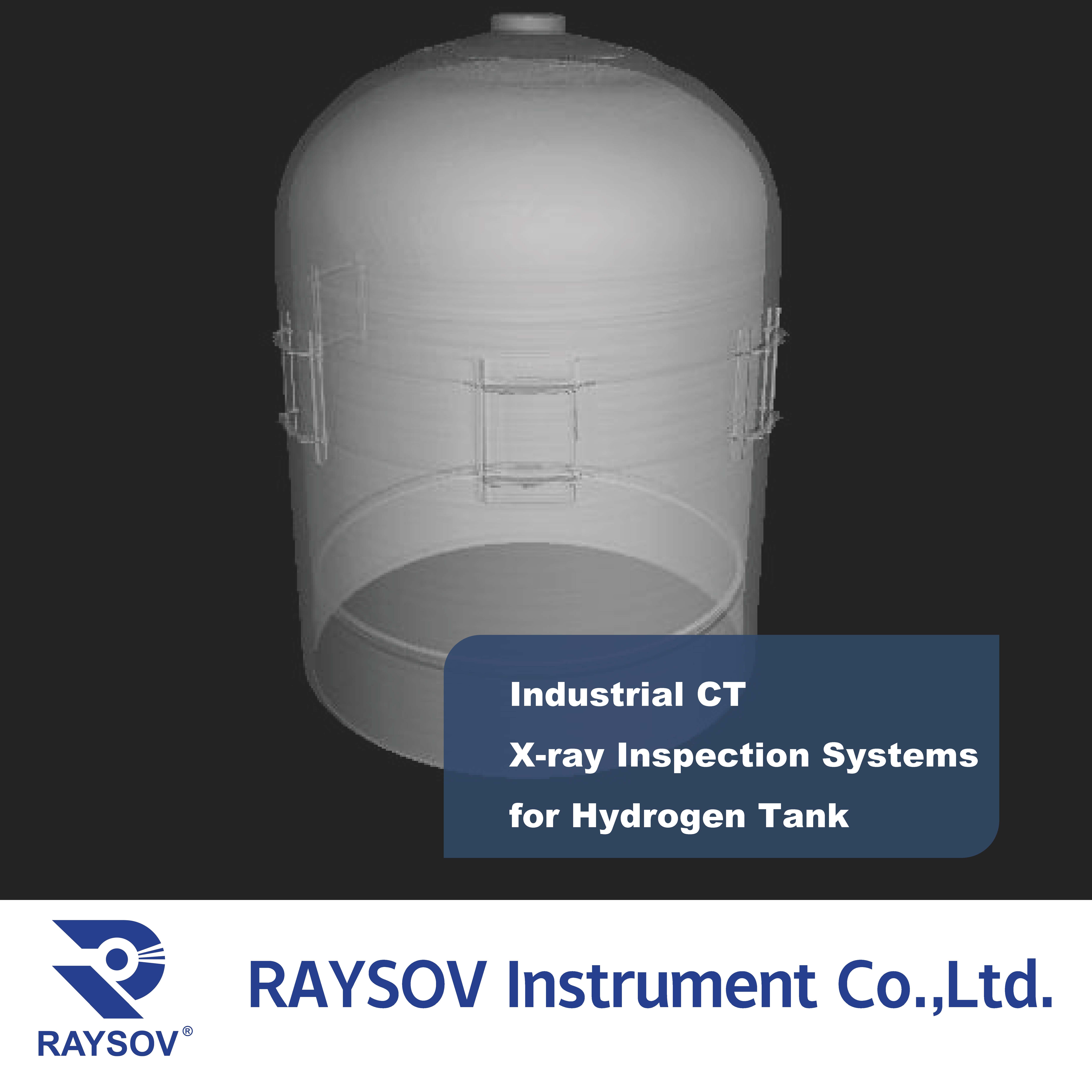

Fast and directly display object internal structure and defects with 3D/2D images.
Easy operation, strong function, high accuracy, high-resolution!
Excellent performance and high-reliable in industrial environment!
We offer customised solutions to meet special needs in multiply applications.
Composition
The system is mainly composed of seven modules, such as：
1. X-ray tube,(or dual X-ray sources).
2. high resolution digital flat panel detector/linear array detector,(or dual detectors).
3. computer digital image processing system(with three-dimensional scanning Software and reconstruction software).
4. mechanical transmission system.
5. electrical control system.
6. monitoring system.

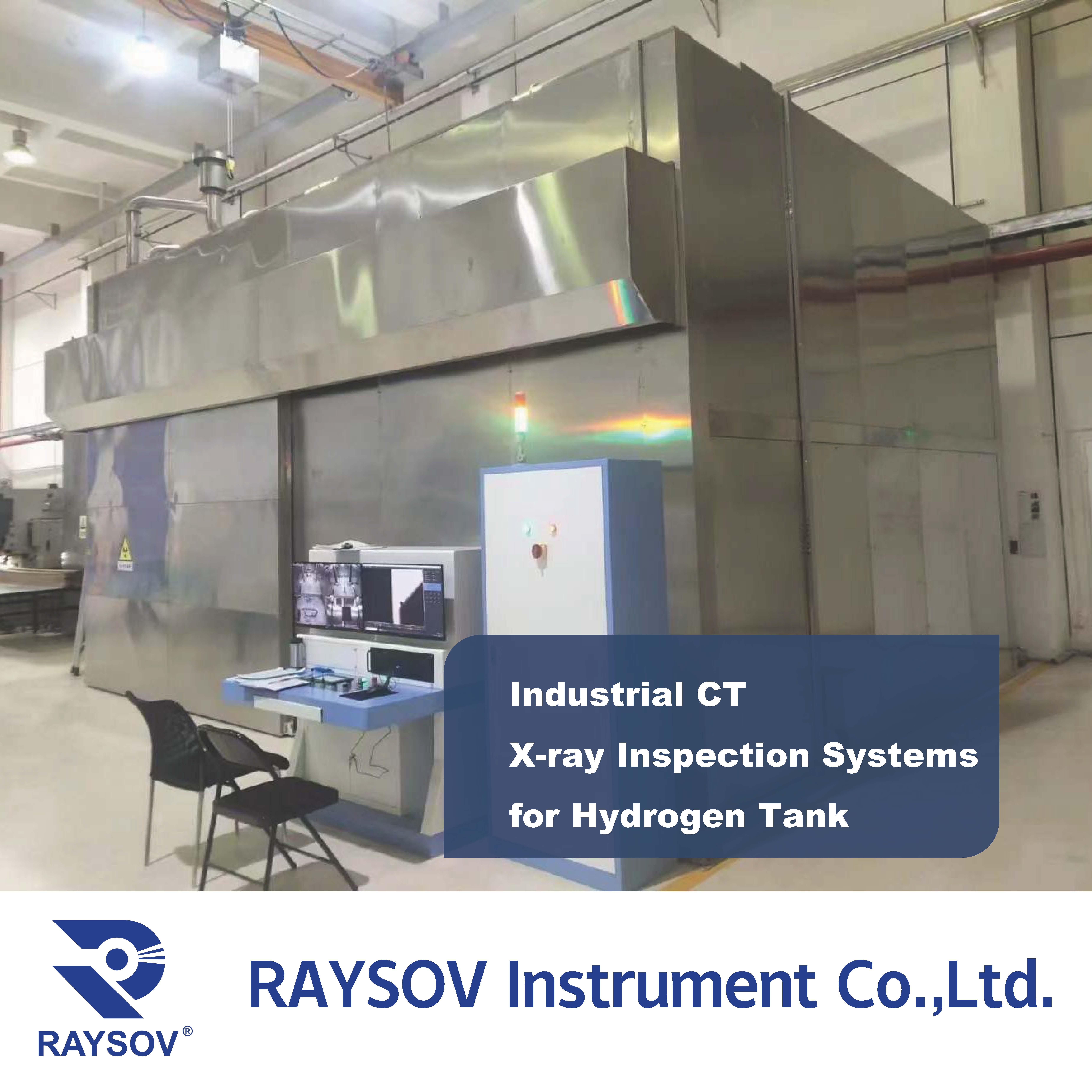

7. protection lead room,(or build concrete protection room).
All systems are designed to comply with the latest international radiation safety standards.
Application
Flexible CT(Computed Tomography), allowing for even more detailed 3D analysis of complex structural component or large-scale non-standard part internal structures and materials. This makes it particularly useful for quality control and failure analysis in various industries, such as aeronautics and astronautics, information communication, electric power electron, energy resource and traffic, science and research fields.
