X-ray equipment is mainly composed of X-ray high voltage generators(unipolar or bi-polar), X-ray tube and X-ray detector and so on. The high voltage generator is one of the core components of X-ray equipments/X-ray machines/X-ray systems, which plays the role of heart and brain in the X-ray machines/X-ray systems.

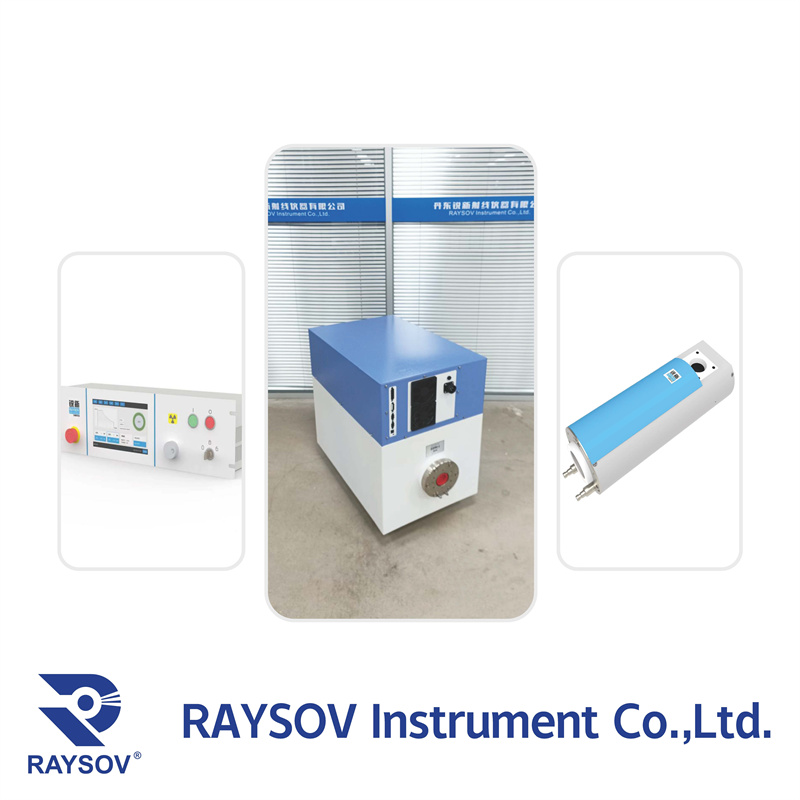

PFS series high-frequency high-voltage X-ray machine
PF series is an upgrade of PT series, with better integration, providing more competitive X-ray sources and high-voltage generator for industrial applications such as sorting, security inspection, irradiation and thickness measurement
Compact, easy to integrate the whole X-ray machine
Integrated, digital design, the use of higher grade AD, DA chips, perfect monitoring of internal signals, to ensure higher stability, can be long-term non-stop work
The control accuracy of kV and mA is improved to less than 0.1%, and higher precision can also be customized according to demand
Improve the sensitivity of discharge protection, better protect X-ray tube and high voltage loop

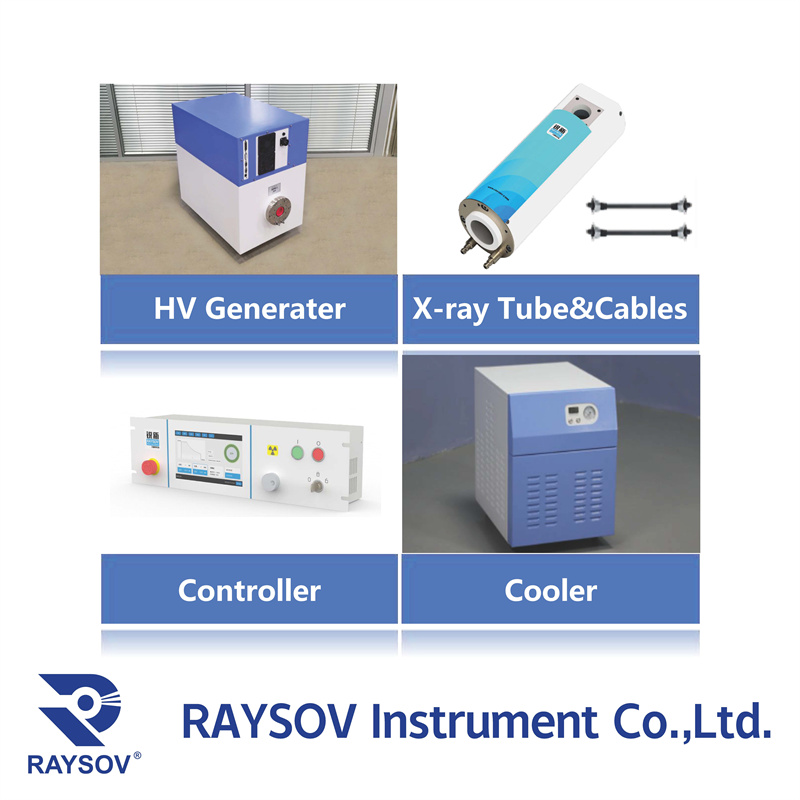

X-ray tube | High-voltage cable | Generator | Controller | Cooler | ||
PFS160 | -160HP/11 -160HP/20
| -160/20 -160/21 -160/22 -160C | N3/160-R24-R24-Xm | PF160C3000 | software control PTC5000 | PFK3000/WA PFK3000/WC |
PFS225 | -225HP/11 | -225/22 -225FB -228 | P3/250-R24-R24-Xm | PF225C3000 | software control PTC5000 | PFK3000/WA PFK3000/WC |
PFS320 | -320HP/11 -320HP/11AX | -320/23 -320/26 -320FB | N3/160-R24-R24-Xm | PF320D6000 | software control PTC5000 | PTK4500/OA PTK4500/OC |
PFS450 | -451HP/11 | -451/26 -450FB | P3/250-R28-R28-Xm | PF450D6000 | software control PTC5000 | PTK4500/OA PTK4500/OC |
X-ray machine | Voltage range | Current range | Maximum power | Voltage and current accuracy | Voltage and current repetition accuracy | |
PFS160 | 10-160kV | 0-30mA | 3000W | 0.25%、0.25% | 0.01%、0.1% | |
PFS225 | 10-225kV | 0-30mA | 3000W | 0.25%、0.25% | 0.01%、0.1% | |
PFS320 | 10-320kV | 0-30mA | 4200W | 0.25%、0.25% | 0.01%、0.1% | |
PFS450 | 10-450kV | 0-30mA | 4500W | 0.25%、0.25% | 0.01%、0.1% | |
PE generator has higher protection sensitivity and light buffer protection, more suitable for X-ray tube training and other easy to spark discharge conditions

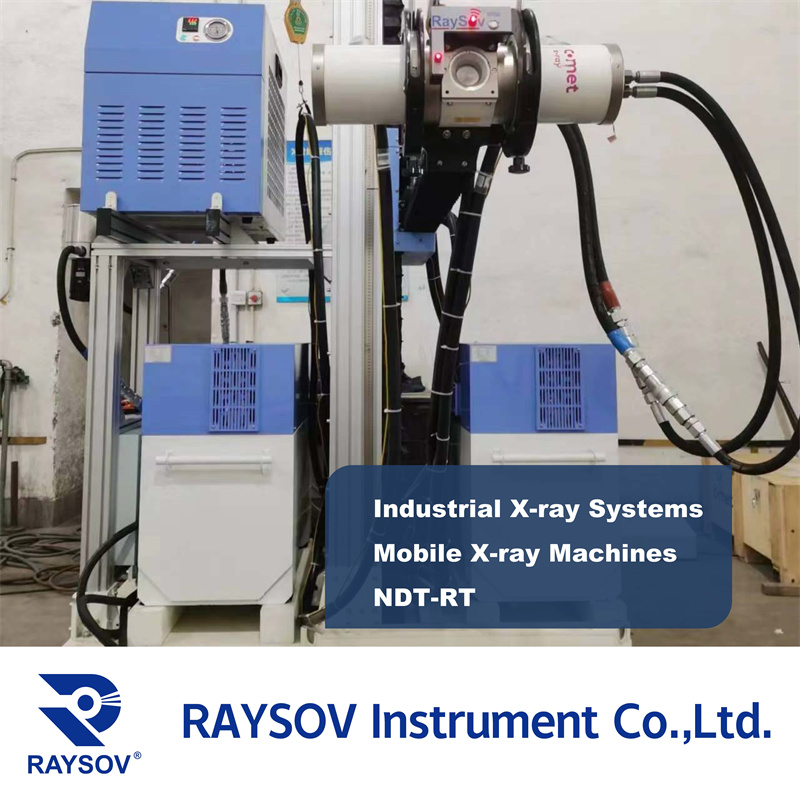

PES X-ray machine adopts a more integrated design, suitable for aerospace, industrial CT and other high-end applications
More compact, bipolar generators can be stacked to save space
Match 500kV, 550kV, 600kV and other higher voltage X-ray tubes
X-ray machine | X-ray tube | High-voltage cable | Generator | Controller | Cooler | |
PES160 | -160HP/11 -160HP/20
| -160/20 -160/21 -160/22 -160C | N3/160-R24-R24-Xm | PE160C3000 | PTCon5000 | PFK3000/WA PFK3000/WC |
PES225 | -225HP/11 | -225/22 -225FB -228 | P3/250-R24-R24-Xm | PE225C3000 | PTCon5000 | PFK3000/WA PFK3000/WC |
PES320 | -320HP/11 -320HP/11AX | -320/23 -320/26 -320FB | N3/160-R24-R24-Xm | PE320D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
PES450 | -451HP/11 | -451/26 -450FB | P3/250-R28-R28-Xm | PE450D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
PES500 | -500HP/11 |
| P3/250-R28-R28-Xm | PE500D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
PES550 | -550HP/11 |
| P3/250-R28-R28-Xm | PE550D6000 | PTCon5000 | PTK4500/OA PTK4500/OC |
X-ray machine | Voltage range | Current range | Maximum power | Voltage and current accuracy | Voltage and current repetition accuracy | |
PES160 | 10-160kV | 0-30mA | 3000W | 0.1%、0.1% | 0.01%、0.1% | |
PES225 | 10-225kV | 0-30mA | 3000W | 0.1%、0.1% | 0.01%、0.1% | |
PES320 | 10-320kV | 0-30mA | 4200W | 0.1%、0.1% | 0.01%、0.1% | |
PES450 | 10-450kV | 0-30mA | 4500W | 0.1%、0.1% | 0.01%、0.1% | |
PES500 | 10-500kV | 0-15mA | 1500W | 0.1%、0.1% | 0.01%、0.1% | |
PES550 | 10-550kV | 0-15mA | 1500W | 0.1%、0.1% | 0.01%、0.1% | |
