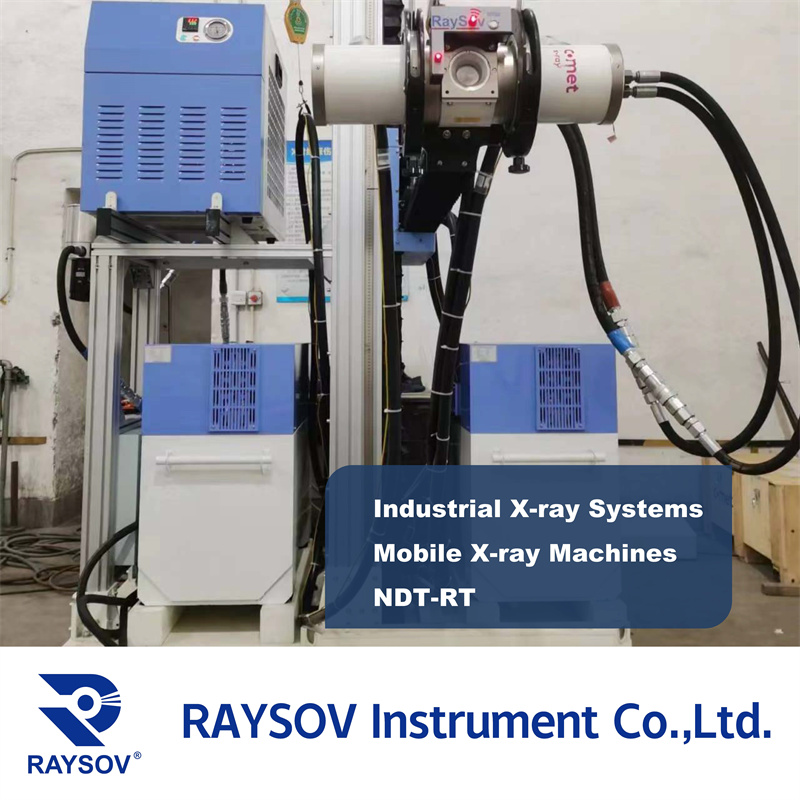

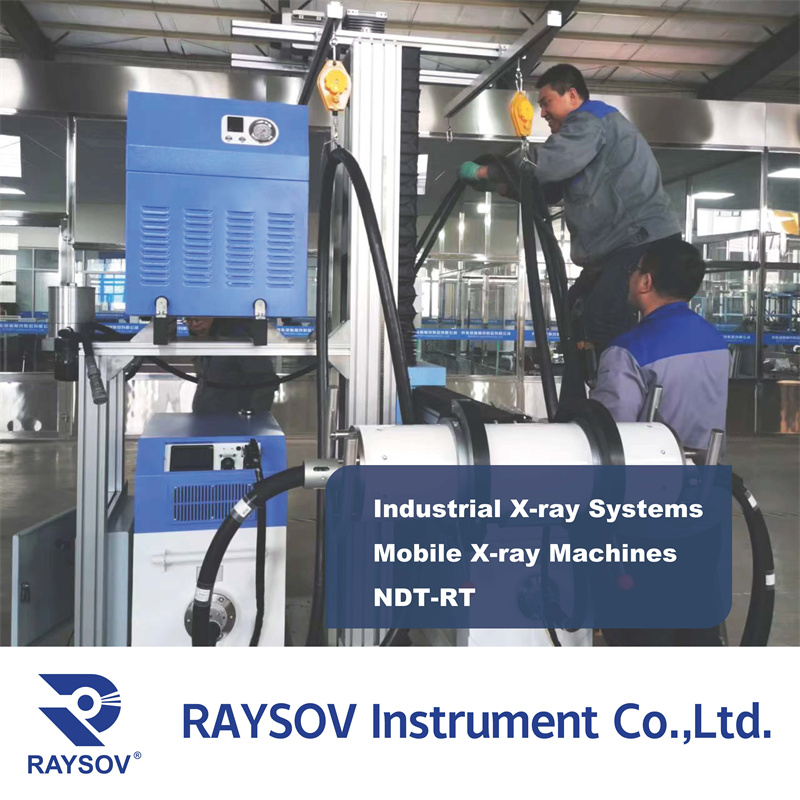

PTS series High-frequency high-voltage X-ray Machine,carried by X-ray cart,Simply sliding or turning the whole apparatus enables mobile position changes,user friendly for operator to get RT film or DR X-ray imaging easily.
PT series HFHV Generator
Industrial NDT (non-destructive testing) field popular high frequency X-ray machine!！
In the field of industrial NDT (non-destructive testing), the annual installed capacity exceeds 150 sets！
Quick maintenance in all regions of China, user-site downtime not exceed 72 hours！
High versatility and modularity, preset a variety of X-ray tube programs, one key adjustment upgrade！
High voltage oil insulation facilitates maintenance！
RAYSOV brand manufacturing standards strictly, PTS series of high frequency X-ray machine selected high quality ceramic X-ray tube matching PT high voltage generator and cooler, provide with up to 4500W continuous operation X-ray machine. It focuses on providing stable X-ray sources for industrial inspection (non-destructive testing), industrial CT, scientific research and other applications.
PTS X-ray machine modulator adopts high-frequency double closed-loop control, and no need to add an auxiliary voltage regulator. It can overcome the interference and fluctuation of the external network voltage through its own rectifier generator, so that the imaging is stable. It is not interfered by the fluctuation of the generator in the field, and the stability of the radiation output dose is fully guaranteed. The bipolar generator is controlled by two modulators, which fully overcomes the problem of voltage imbalance between two electrodes caused by single modulator and prolongs the service life of X-ray tube. The protection function of the whole machine is powerful, with kV, mA follow protection, for any kV, mA value can be set 1%-5% protection value, slight spark discharge can reach microsecond protection.
PTS series High frequency X-ray machine product description
Raysov PTS series high-frequency X-ray machine selects high-quality metal ceramic ray tubes and matches Power Tree high-voltage generator and cooling products to provide customers with up to 6000W continuous working X-ray machines. It can provide as stable X-ray source for non-destructive testing, industrial CT, biological irradiation, thickness measurement, scientific research and other applications.
PTS X-ray machine modulator adopts high-frequency dual closed-loop control. It does not need to add auxiliary voltage-stabilized power supply. It can overcome the interference and fluctuation of external network voltage through its own rectifier power supply, and the imaging is stable. It is not affected by the power supply fluctuation on the site of use, and fully guarantees the stability of the X-ray output dose. The bipolar HV generator adopts dual modulator control, which fully overcomes the problem of voltage imbalance between the two poles caused by single modulator control and prolongs the service life of the X-ray tube. The whole machine has powerful protection function, with kV and mA follow-up protection. For any kV and mA values, the protection value can be set to 1%-5%, and a slight discharge can achieve microsecond protection.
Technical parameters
model | Film transillumination thickness | Real-time image transillumination reference value |
PTS160 | 34mm | 20mm |
PTS225 | 50mm | 30mm |
PTS320 | 80mm | 50mm |
PTS450 | 108mm | 60mm |
PTS500 | 115mm | 65mm |
Film transillumination conditions: FFD700mm, Pb-screen 0.02mm, blackness 2.0, 100mA·min; Real-time transillumination conditions: FDD=800mm, FOD=500mm | ||
