Description.

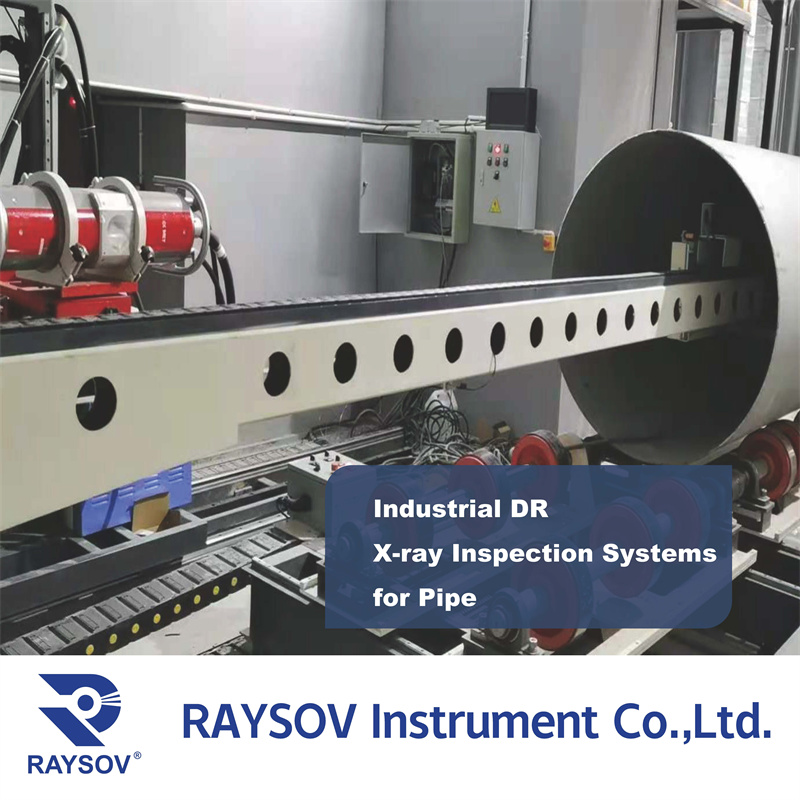

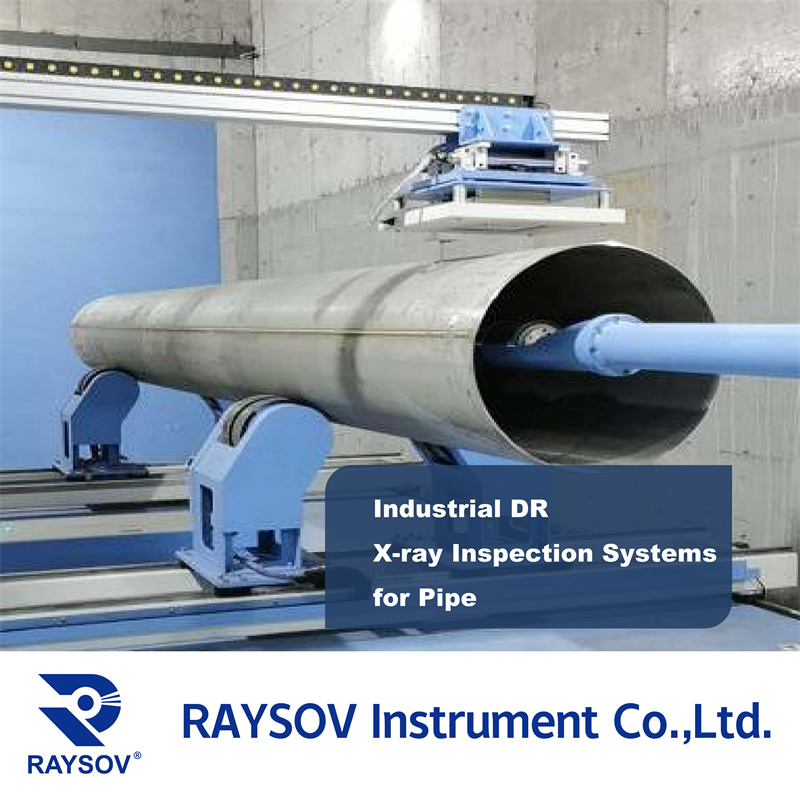

RAYSOV ZXFlaseeS Digital X-ray System for Longitudinal Welds steel pipe/spiral welded pipe/LNG tanks are used to examine the internal structure and quality of castings.
This system utilize X-rays to create images of the casting, allowing inspectors to identify any defects or issues that may be present.
Quickly and effectively check the porosity, shrinkage hole, porosity, shrinkage, slag inclusion and other defects of the castings.
Features.
Use HFHV generator,strong penetrating power and stable X-ray dose.Use wide range HD Flat-panel detector,high image sensitivity.
Anti-arc,extend X-ray tube lifespan,keep the systems safe,reliable and durable.
High-level automation,automatic transportate test object, automatic positioning to detection area,optional ADR function,improve detection efficiency.
Raylion image processing software,powerful filtering function one click,clear image quality,easy operate,one click inspection report.
Strong structure,beautiful appearance,high-level protection, leakage dose <1μSv/h@30cm from lead room.
Modular design,easy maintenance,system log can store fault message and self-diagnosis,reduce downtime costs.
Parameters
Composition The system is mainly composed of seven modules, such as：
1. high frequency and high voltage（HFHV）X-ray source,
2. high resolution digital flat panel detector,
3. computer digital image processing system,

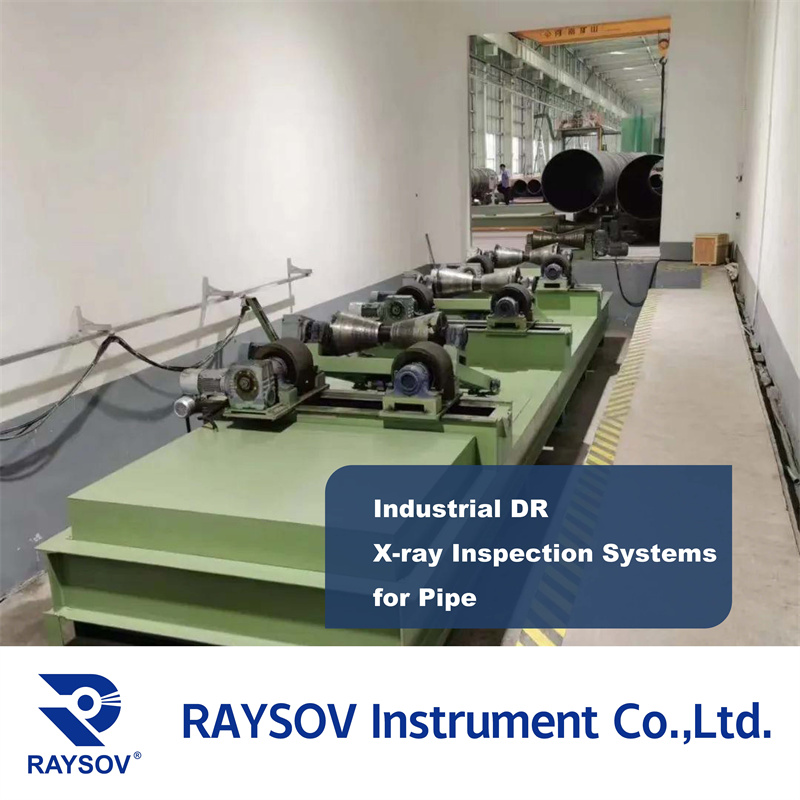

4. mechanical transmission system,
5. electrical control system,
6. monitoring system,
7. protective lead room(customer built).
All systems are designed to comply with the latest international radiation safety standards.
Application
It is suitable for non-destructive testing of various Welded pipe/tube/tanks, aluminum pipes, stainless steel pipes, longitudinal welded pipe
(LSAW),spiral welded pipes(SSAW) and other pipe bodies, obtaining high-quality images of the pipe body, visually presenting the internal welding defects such as cracks, unfused, porosity, unwelded, etc.
